Floor Vent Sizing and Matching Guide
The single most common floor vent mistake is buying based on the old cover's size instead of the actual duct opening underneath it. Pull the old vent, measure the rough opening, and match your new one to that number, not the decorative trim. From there it's a choice between flush-mount metal vents, framed designer vents, or unfinished wood vents stained to match your new hardwood.
Step 1: Measure the Duct Opening, Not the Old Cover
Decorative floor vent covers are almost always larger than the duct hole beneath them, since the frame needs to overlap the finished floor on all sides. If you measure the visible cover and buy a same-size replacement, you'll often end up with a vent that doesn't seat properly in the actual opening.
Before you shop:
- Remove the old vent cover completely.
- Measure the rough duct opening in the subfloor with a tape measure, width and length, to the nearest 1/4".
- Compare that number to the frame or damper dimensions listed on the new vent, not just the nominal size in the product name.
4x10 vs. 4x12: There's No Universal Standard
Both 4"x10" and 4"x12" are common residential floor register sizes, and which one you have depends on your home's original HVAC design. There's genuine variation across builders, decades, and even room-to-room within the same house. Don't assume based on what a neighbour's house has; measure your specific opening every time you're replacing a vent.
Flush-Mount / Framed vs. Drop-In
Most residential floor vents are flush-mount (framed). The frame sits on top of the finished floor, level with the surface, and the damper mechanism sits inside the duct opening below. This is what our Fittes Framed Lite and OG lines are built for, and it's the easier retrofit for an existing floor since you're not cutting into the subfloor or underlayment.
Drop-in vents recess into the opening itself and sit closer to flush with the duct rather than resting on the floor surface, less common in residential retrofits and usually reserved for specific renovation situations.
Choosing a Style and Finish
| Product | Size | Style | Price |
|---|---|---|---|
| Fittes Framed Lite, Cotton White | 4"x10" | Budget framed, standard replacement size | $37.50 |
| Fittes Framed Lite, Matte Black | 4"x12" | Budget-tier framed register | $44.70 |
| Fittes Framed OG, Matte Black | 4"x12" | Designer framed register | $192.00 |
| Fittes Aria OG, Matte Black | 4"x10" | Designer flush-fit, double-channel damper | $250.00 |
The "Lite" line is a clean, practical replacement for most homes. The "OG" designer lines add a more refined finish and, on the Aria, a double-channel damper for finer airflow control, worth it in a main living space where the vent is visible and the finish matters more.

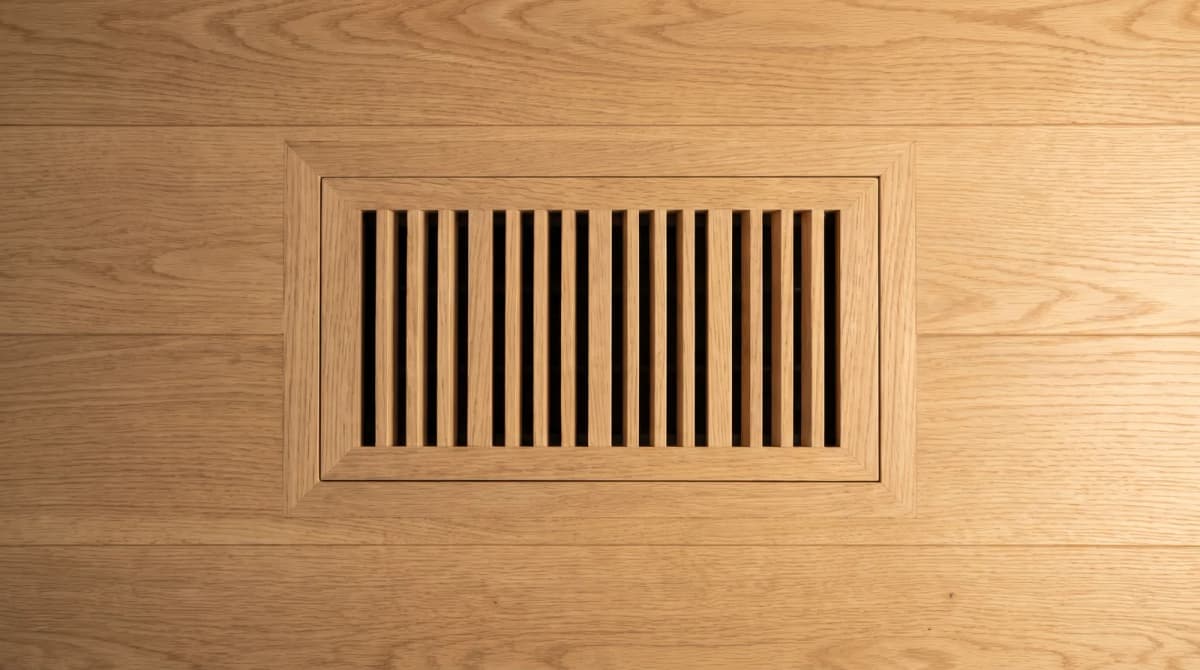

Matching Wood Vents to Your Hardwood Floor
If you've got hardwood going in, a metal vent will always read as an obvious mismatch. We stock unfinished wood vents in the three species that cover most GTA hardwood installs:
| Product | Species | Price |
|---|---|---|
| Six Points Maple 4"x10" | Unfinished maple | $24.05 |
| Six Points Red Oak 4"x10" | Unfinished red oak | $22.55 |
| Six Points White Oak 4"x10" | Unfinished white oak, matches today's most popular hardwood species | $24.05 |
Because these ship unfinished, you stain and finish them after purchase using the same stain or finish coat used on your engineered hardwood or solid hardwood floor. That's the only way to get a genuinely close match rather than hoping a pre-finished vent happens to line up.
Products We Stock
- Fittes Framed Floor Vent Lite 4"x10" Cotton White, $37.50
- Fittes Framed Floor Vent Lite 4"x12" Matte Black, $44.70
- Fittes Framed Floor Vent OG 4"x12" Matte Black, $192.00
- Fittes Aria OG Floor Vent 4"x10" Matte Black, $250.00
- Six Points Maple Floor Vent 4"x10", $24.05
- Six Points Red Oak Floor Vent 4"x10", $22.55
- Six Points White Oak Floor Vent 4"x10", $24.05
See the full range at Floor Vents.
Bring Us the Measurement
Not sure which size or finish matches your new floor? Bring in your duct measurement and a sample of your flooring, and we'll help you pick the right vent at the showroom.
Pick up vents at our Markham showroom, or call (647) 428-1111 if you need help matching a specific hardwood species.
Frequently Asked Questions
Should I measure the old vent cover or the duct opening?
Always measure the duct opening (the actual hole in the subfloor), never the decorative cover. Cover sizes are often 1-2 inches larger than the duct opening on every side to overlap the floor, so measuring the cover alone will get you the wrong size vent. Pull the old cover, measure the rough opening with a tape measure, and match your new vent's frame or damper size to that number.
What's the difference between 4x10 and 4x12 floor vents?
Both are standard residential duct sizes, and neither is universally more common. It depends on your home's HVAC layout. 4x10 tends to show up more in main living areas and 4x12 in larger rooms or basements, but there's real variation between builders and eras. Measure your specific opening rather than assuming a size based on what's common.
What's the difference between flush-mount and drop-in floor vents?
A flush-mount (or framed) vent sits level with the floor surface, with the frame resting on top of the finished flooring. This is what we stock in the Fittes Framed Lite and OG lines. A drop-in vent sits recessed into the duct opening itself. Flush-mount is the more common residential choice and generally easier to install without cutting into the flooring underlayment.
How do I match a wood floor vent to my hardwood?
Buy an unfinished wood vent in the same species as your floor (maple, red oak, or white oak in our lineup), then stain and finish it yourself using leftover finish or a matched stain sample from your flooring install. Because it's finished after the fact, you can dial in an exact match rather than hoping a pre-finished vent happens to line up with your floor's colour.
Do I need a different vent for vinyl or laminate floors vs. hardwood?
Wood vents are typically only offered in species that make sense for hardwood matching, since vinyl and laminate don't take stain the same way. For vinyl and laminate floors, a metal framed vent (like our Fittes Framed Lite line) in white or matte black is the standard, practical choice and holds up well under floating floor movement.
